Product catalogue
GOLO Products
A structured catalogue of mechanical belt fasteners, repair systems, hinge pins, installation equipment and belt maintenance tools.
Filters · 47
20002
20002 continuous hinged belt fastenerBelt width: Up to 1400 mm depending on the installation equipmentBelt thickness: 7.5–16 mm
20003
20003 heavy-duty continuous hinged belt fastenerBelt width: Up to 1600 mm depending on the installation machineBelt thickness: 10–18 mm
T10
T10 double-row belt fastenerBelt width: Matched to belt width; T10LD machine up to 1400 mmBelt thickness: 7.5–16 mm
T10H
T10H double-row hammer-installed fastenerBelt width: Up to 1400 mm with compatible installation equipmentBelt thickness: 7.5–16 mm
T12
T12 double-row belt fastenerBelt width: Matched to belt width; T12LD 1000/1200/1400 mmBelt thickness: 8–16 mm
T12
T12A linked fastenerBelt width: Matched to belt widthConstruction: The catalogue states that the elements are linked with steel wire
T14

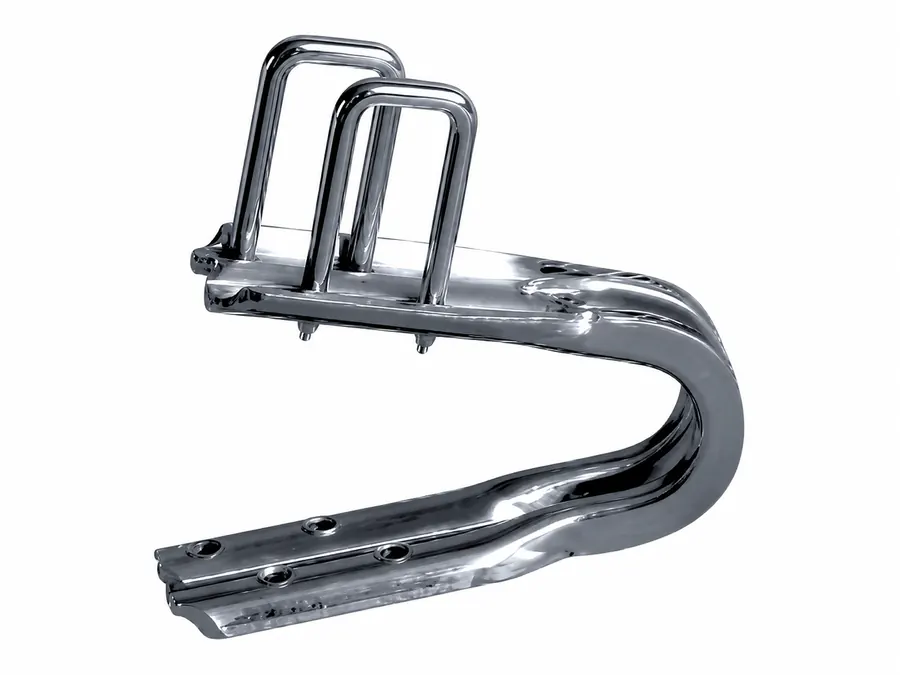

T14 double-row belt fastenerBelt width: Matched to belt width; T10LD up to 1400 mmBelt thickness: 9.5–16 mm
T25
T25 heavy-duty double-row belt fastenerBelt width: Matched to belt width; T25YD 1200/1400/1600/1800 mmBelt thickness: 14–18 mm
T25

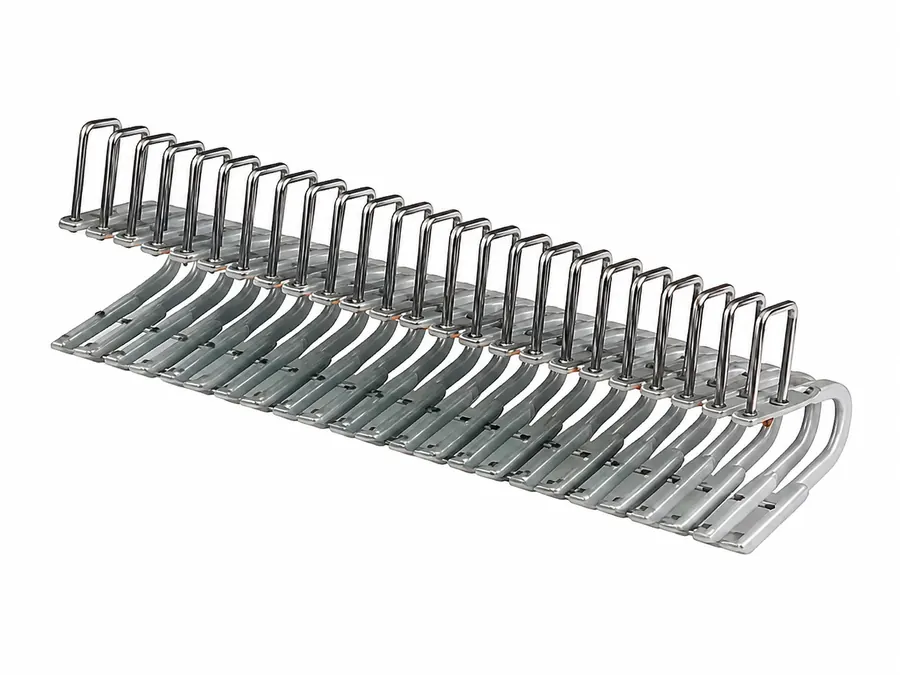

T25A heavy-duty long-strip belt fastenerBelt width: Long sets matched to belt width may be available; 1200 mm exampleBelt thickness: 14–18 mm
T30
T35 belt fastener (T30 family)Belt width: Matched to belt width; SDX5 1200/1400/1600 mmBelt thickness: 7–11 mm
T30
T37-27 belt fastener (T30 family)Belt width: Matched to belt width; SDX5 1200/1400/1600 mmBelt thickness: 10–14 mm
GORO CX

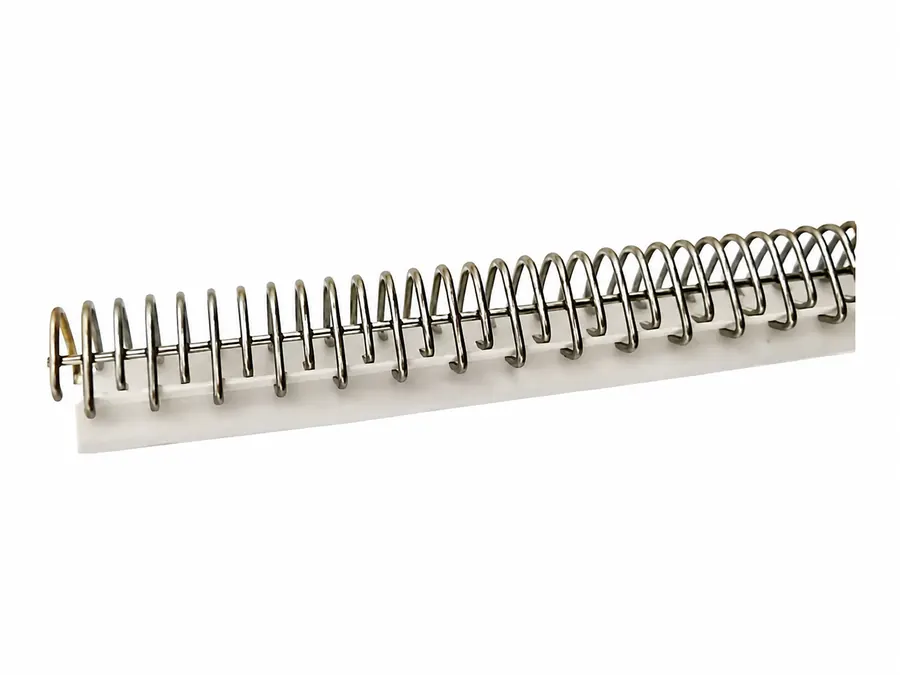

GORO CX wire hook lacingBelt width: 300 / 600 mm for some sizesBelt thickness: Approximately 3.2–10 mm according to the catalogue; an exact table is required
GORFLEX
GORFLEX 140# Bolt Solid Plate Fastening SystemBelt thickness: 5–11 mmNominal belt strength: 400 N/mm
GORFLEX
GORFLEX 190# Bolt Solid Plate Fastening SystemBelt thickness: 8–14 mmNominal belt strength: 600 N/mm
GORFLEX
GORFLEX 1 1/2" Bolt Solid Plate Fastening SystemBelt thickness: 11–17 mmNominal belt strength: 500 N/mm
GORFLEX
GORFLEX 2" Bolt Solid Plate Fastening SystemBelt thickness: 14–21 mmNominal belt strength: 750 N/mm
GORFLEX
GORFLEX 2 1/2" Bolt Solid Plate Fastening SystemBelt thickness: 19–25 mmNominal belt strength: 800 N/mm
GORFLEX
GORFLEX 3" Bolt Solid Plate Fastening SystemBelt thickness: ≥24 mmNominal belt strength: 1000 N/mm
SS / SSP
SS7/SSP7 armored stainless hinge pinBelt width: Approximate lengths 650–1200 mmBelt thickness: Ø7 mm
SS / SSP
SS7-9/SSP7-9 hinge pinBelt thickness: Ø7–9 mmNominal belt strength: According to the compatible series, up to the T37 range
HS / HSP
HS/HSP corrosion-resistant hinge pinBelt width: 1000–1800 mm; custom lengths may be availableBelt thickness: Ø7 / Ø8 / Ø9 mm
RV6
RV6D hammer-type belt fastener installerBelt width: 800 / 1000 / 1200 mmConstruction: Specialized portable installer or installation fixture
RV6
RV6HDQC Pneumatic Belt Fastener Installation MachineBelt width: 800 / 1000 / 1200 mmConstruction: Specialized portable installer or installation fixture
20002/T10H
20002D hammer-type belt fastener installerBelt width: 800 / 1000 / 1200 / 1400 mmConstruction: Specialized portable installer or installation fixture
20003
20003D hammer-type belt fastener installerBelt width: 1200 / 1400 / 1600 mmConstruction: Specialized portable installer or installation fixture
20003
20003HDQC Pneumatic Belt Fastener Installation MachineBelt width: 1200 / 1400 / 1600 mmConstruction: Specialized portable installer or installation fixture
20003
X3-20003 powered belt fastener installerBelt width: 1200 / 1400 / 1600 mmConstruction: Specialized portable installer or installation fixture
T10/T14
T10LD lever-operated belt fastener installerBelt width: 1000 / 1200 / 1400 mmConstruction: Specialized portable installer or installation fixture
T12

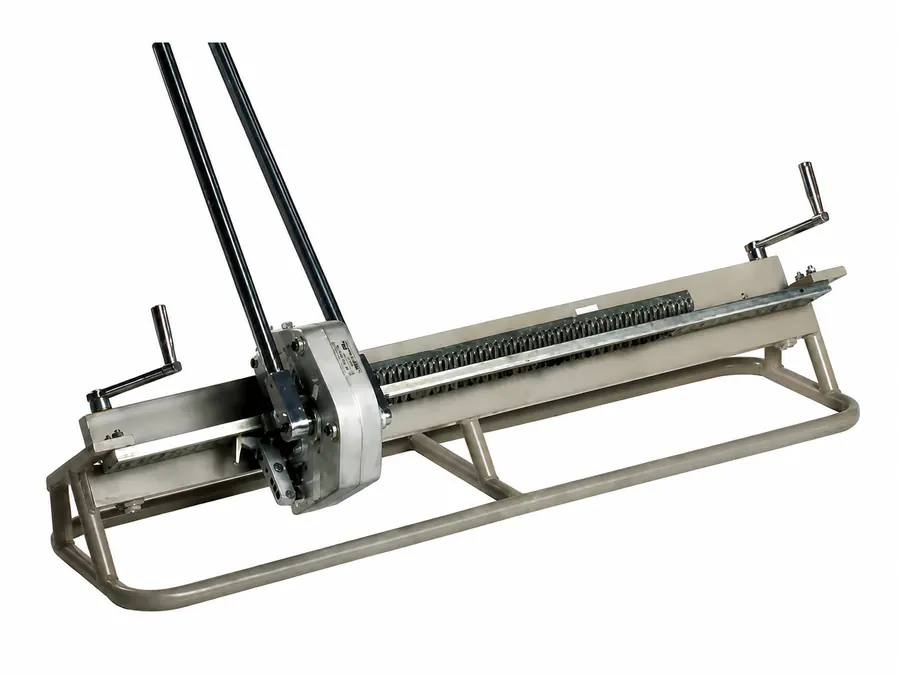

T12LD lever-operated belt fastener installerBelt width: 1000 / 1200 / 1400 mmConstruction: Specialized portable installer or installation fixture
T25/T25A

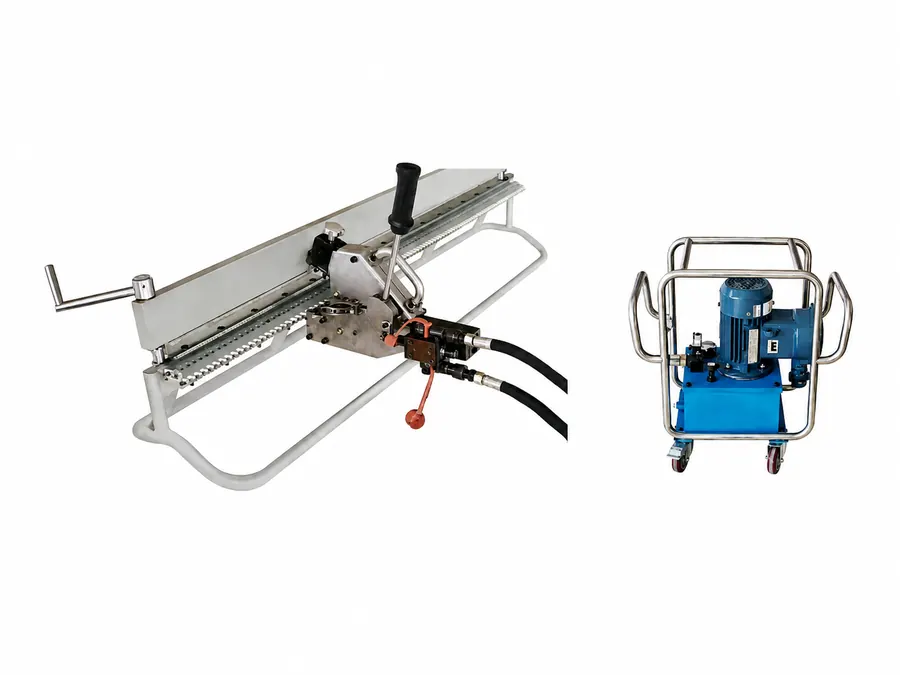

T25YD hydraulic belt fastener installerBelt width: 1200 / 1400 / 1600 / 1800 mmConstruction: Specialized portable installer or installation fixture
T30

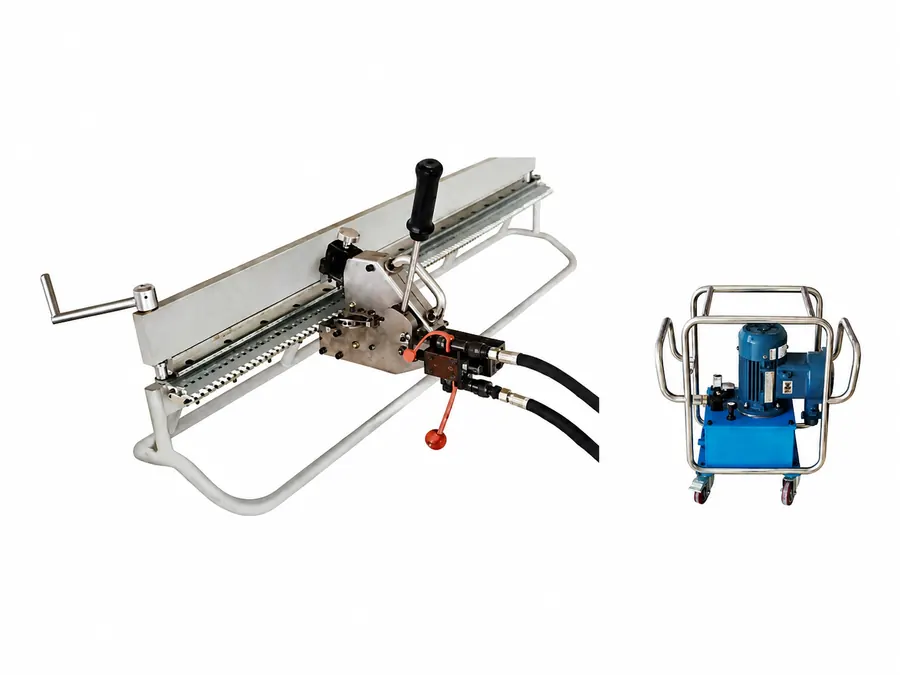

X5-T30 hydraulic belt fastener installerConstruction: Specialized portable installer or installation fixtureMaterial: Steel and mechanical assemblies; exact BOM not published
T30
SDX5 lever-operated belt fastener installerBelt width: 1200 / 1400 / 1600 mmConstruction: Specialized portable installer or installation fixture
MR
MR manual belt fastener installerBelt width: 100 / 300 mmConstruction: Specialized portable installer or installation fixture
T05
T183 hand pressBelt width: 150 mm per stroke; 180×62×55 mm; 2 kgConstruction: Specialized portable installer or installation fixture
GORO CX / wolf-tooth
LDGK belt-lacing toolConstruction: Specialized portable installer or installation fixtureMaterial: Steel and mechanical assemblies; exact BOM not published
SGDA

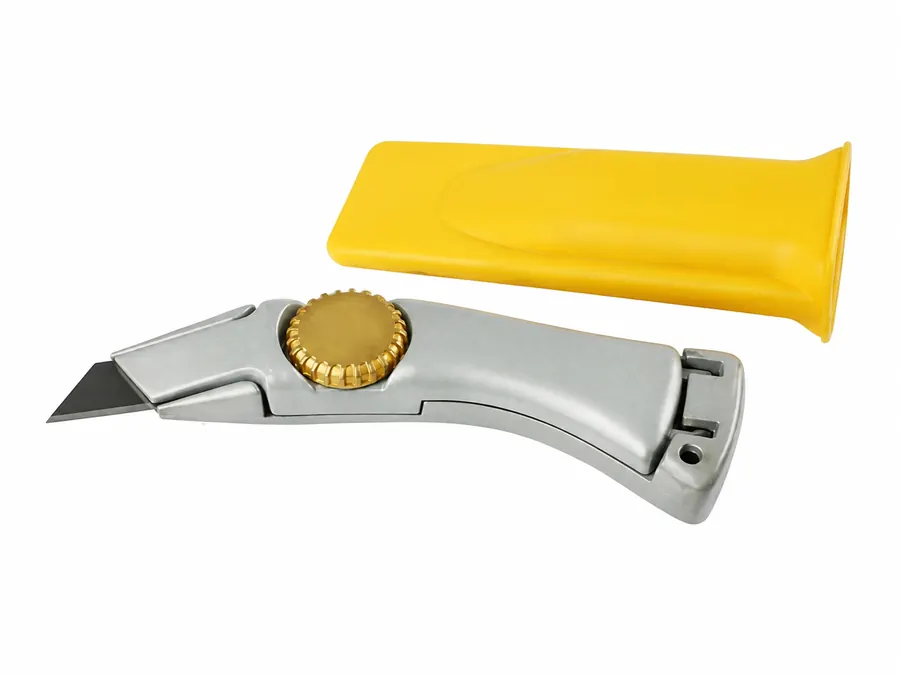

SGDA hand belt knifeConstruction: Hand knife with sheath; two spare blades in the handleMaterial: Blade material not published
20002 / T10H
20002HDQC Pneumatic Belt Fastener Installation MachineConstruction: Pneumatic impact belt fastener installation machine; the catalogue confirms compatibility with T10HMaterial: Exact BOM not published
